EPLAN Cable proD
Software for efficient machine cabling

EPLAN Cable proD is a solution for quick and easy cabling of machines. The software digitises the corresponding designs and provides the information required for production and assembly. This means that prefabricated cables can also be used.

Cable planning based on the plug & play principle

Precision is required when constructing machines – all the way through to the final steps: if the cables don’t have the correct lengths or have been incorrectly routed, it is not uncommon for entire commissioning processes to have to be postponed.

EPLAN has therefore dedicated an entire software solution for planning the corresponding machine cabling: EPLAN Cable proD. This also makes it easy to order prefabricated cables. Time-consuming trimming and offcuts are now a thing of the past.

This is how you benefit from EPLAN Cable proD

Determine cable lengths early on

The routing path and thus the length of the cable is determined on the digital model of the machine during the engineering phase, meaning that the space required for cabling has already been determined at this early stage of the process.

Include different disciplines

The requirements for the electrical engineering are visualised in the MCAD model, thereby ensuring that the cables can be installed as planned.

Easier ordering

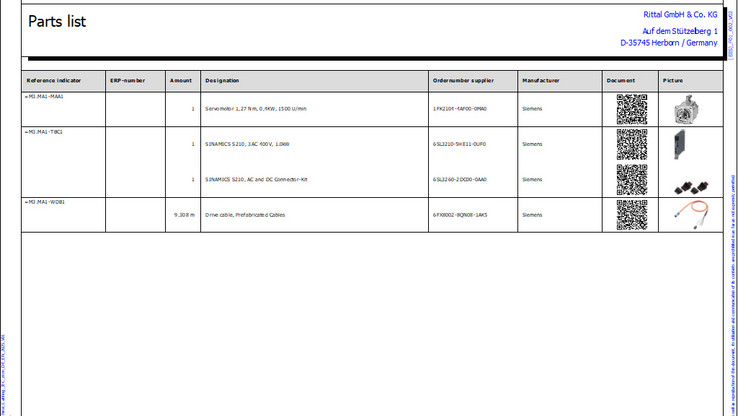

Ordering the proper prefabricated cables is made easier because all the information has been collected in one place. The engineering results include the length along with the exact routing and connection assignments.

Secure planning

Early coordination between mechanical and electrical engineering allows for good planning, meaning that any “unpleasant surprises” – like those due to errors that are only first recognised in assembly – are a thing of the past.

Adapt faster

The digital twin of the machine eliminates the need for a physical prototype, meaning errors can be corrected much more quickly than before. This prevents high costs, reduces the efforts needed, and avoids problems that would otherwise arise from changes to the mechanical design or due to machine variants. You can easily and quickly make changes on the digital model.

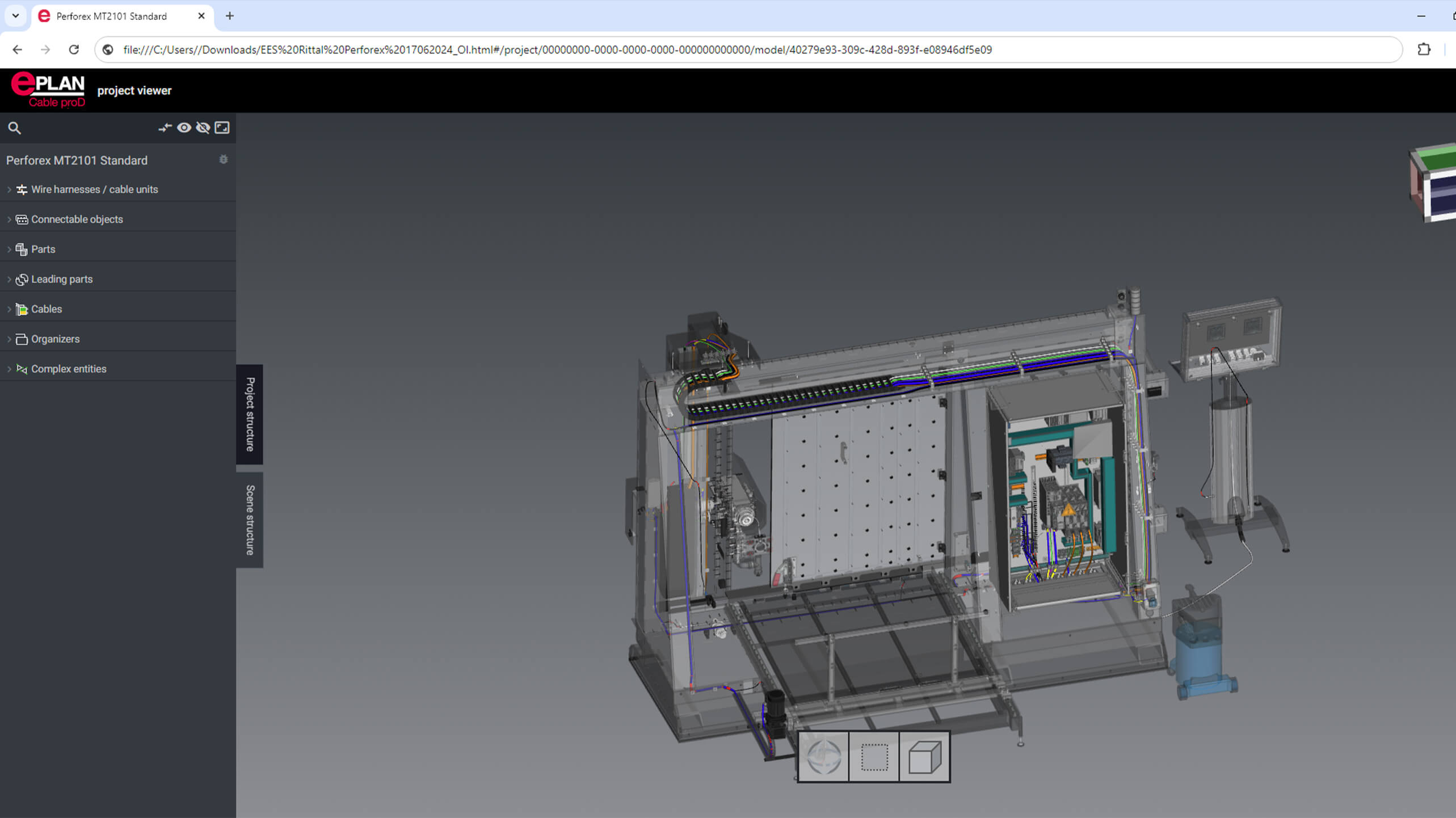

First glimpse of machine cabling with EPLAN Cable proD

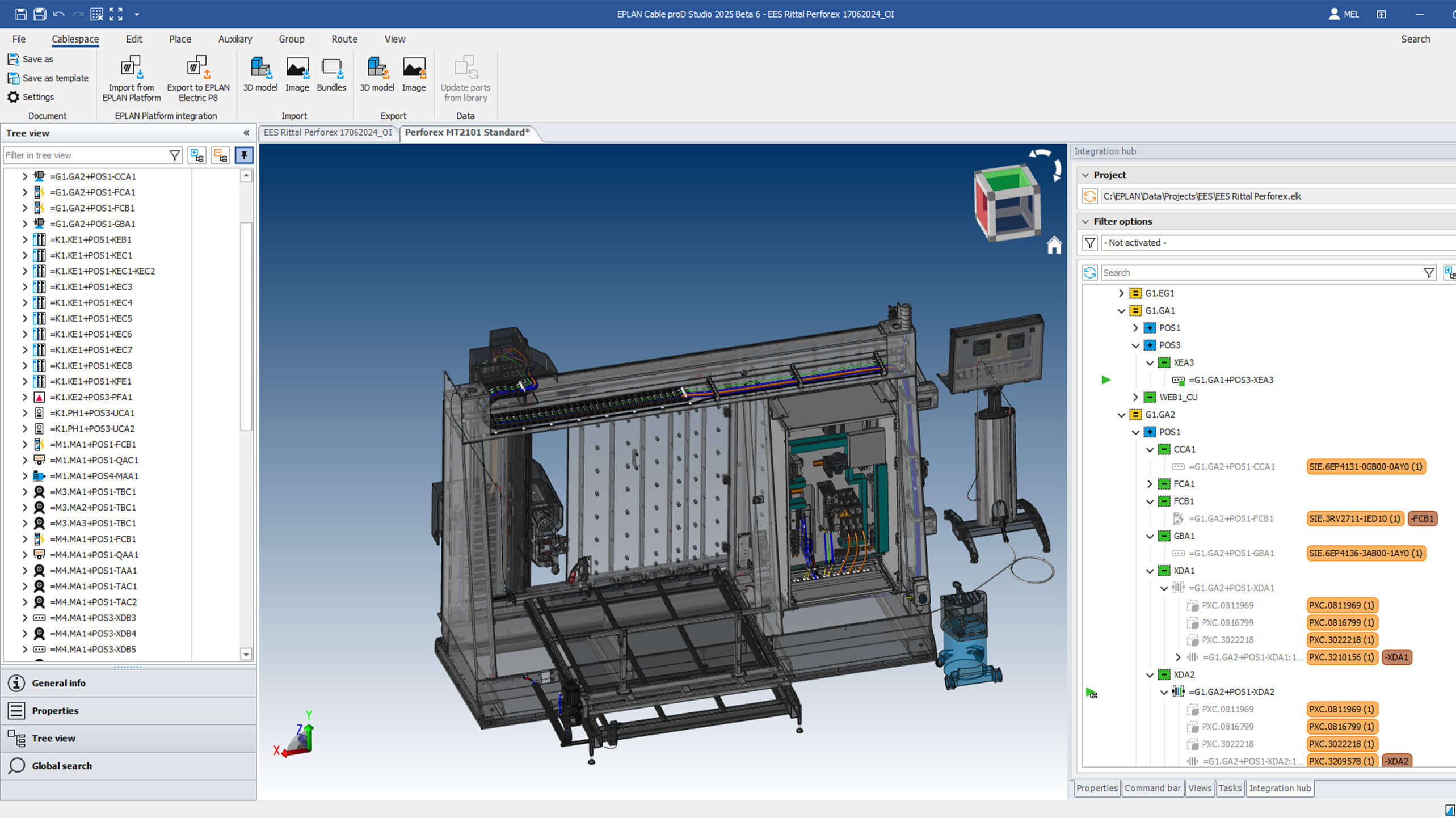

Guided cable installation — … guided cable installation

User Reports & Customer Testimonials

EPLAN Cable proD in Practice

Find out how companies from various industries are using our solutions to meet current technical and business challenges to improve their competitiveness.

“Thanks to digital planning with EPLAN Cable proD, the correct cable lengths can be determined and procured directly. This prevents incorrect orders of cables that are too short or too long and the fitters have the right cables to hand straight away.”

20 % time saving in the development and prototype phase thanks to digital twin and EPLAN Cable proD.

“First time right, i.e. the quantity of cables is increased where the cable length is right the first time and not second time still wrong.”

Further user reports & customer testimonials

Combine EPLAN Cable proD with additional solutions

These products add even more value:

EPLAN Electric P8

The schematics: basic information for machine cabling

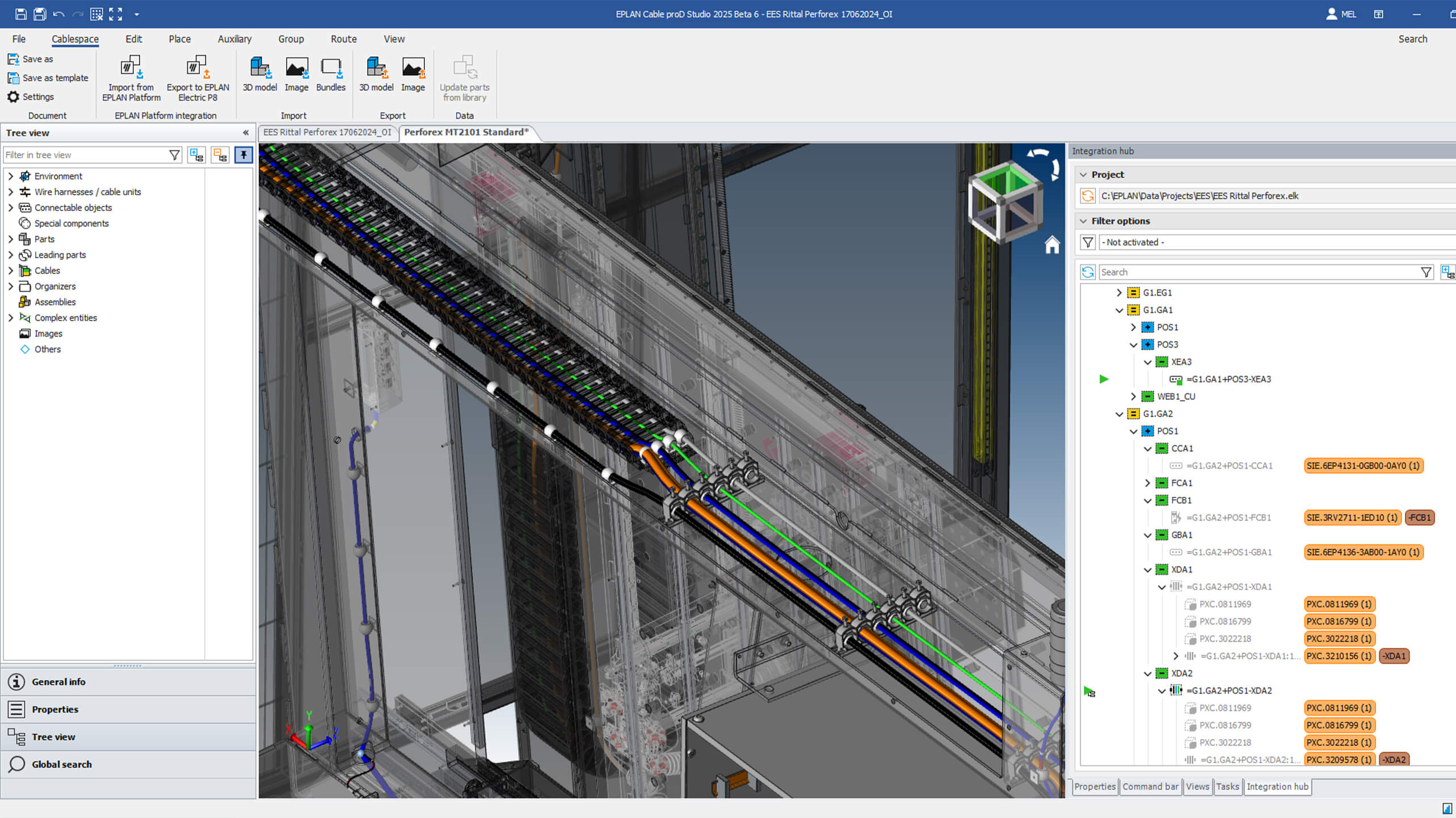

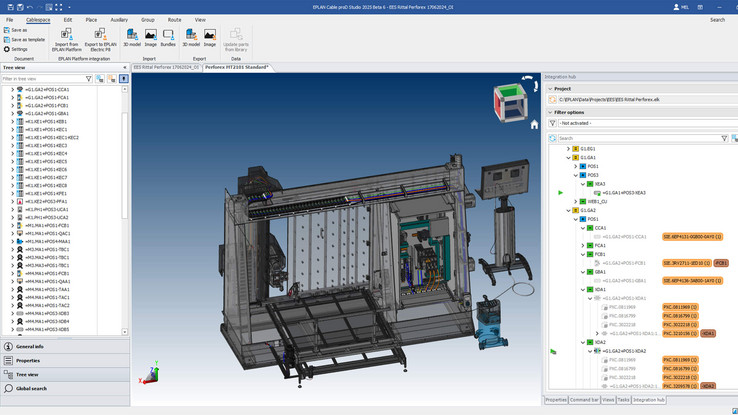

The schematics generated in EPLAN Electric P8 supply the cable and device data, thus all the basic information required for machine cabling. Transfer this data to EPLAN Cable proD and define the cabling virtually on the 3D model of the machine.

More about EPLAN Electric P8

EPLAN Pro Panel

Also design the control cabinet in 3D

Follow a consistent path to digitalisation for control cabinet design as well. In EPLAN Pro Panel, you can create a complete 3D model of the control cabinet and this digital twin can be used to supply all the data and information for manufacturing the control cabinet.

More about EPLAN Pro Panel
